How To Fix The "Blueprint Missing" Error in Workflow Studio

For more information about upgrading your SiteDocs Package, click here!

The default error message in Workflow Studio is sometimes "Blueprint Missing," which doesn't usually provide enough context to identify what the issue(s) are in your Workflow. Follow the steps below to identify the specific error message in your Workflow.

Currently, pre-validation errors in Workflow Studio are unable to display the logs in a modal, which can result in the default error message of “invalid blueprint”. To address this issue, you can use the Network tab to navigate to the actual error and fix it.

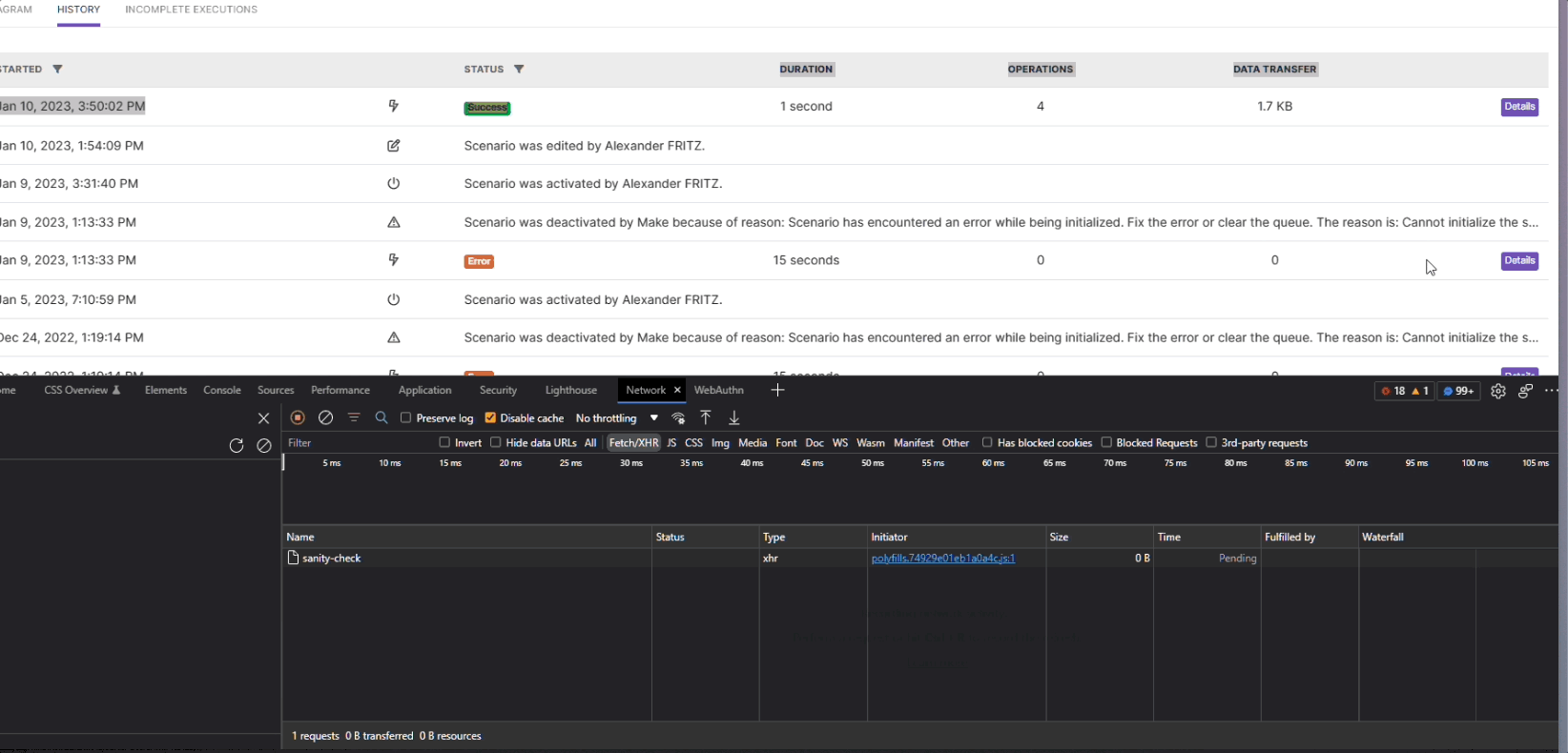

The Network tab is available in all types of browsers. To begin, open your browser’s Network Console and make sure to keep it open for the following steps to record the network activities.

Next, either access the specific scenario history page where the error occurred or run the execution where the “invalid blueprint” error was displayed.

Copy the execution ID from the URL bar or from the logs and paste it into the search area in the browser Network Console.

You can then open the scenario log from the Network tab and review the JSON format to identify the error. The log should display the error from sub-errors.
